통조림 음료 레토르트 살균기

FOB 참조 가격:최근 가격 확인
US$7,500.00 - US$95,000.00 / 세트 | 1 세트 (최소.)
모델 번호:
CT.12-3.B.3
사용법:
통조림 식품 일기 제품 과일 & 야채 고기 다른
유형:
압력솥
리드 타임::
수량(세트) 1 - 1 >1
예상 시간(일) 30 양도 가능
신고 의심스러운 활동
개요
빠른 세부 사항
Applicable Industries:
제조 식물, 식품 & 음료 공장, 농장에, 소매
조건:
새로운
원래 장소:
Shandong, China
유명 상표:
MOSEN
전압:
380 V/220 V
힘 (W):
17.5Kw
무게:
2920kgs
차원 (L*W*H):
4500mm * 1300mm * 3140mm
증명서:
ISO CE ASME
보장:
1 년
제공되는 판매 후 서비스:
Field 설치, 시운전 및 training
절연 레이어:
바위 모직
살균 유형:
고온 고압 살균
디자인 압력:
0.35Mpa
소재:
식품 학년 스테인레스 스틸 304
내경:
1200mm
제어 모드:
전체 자동/자동
디자인 온도:
145 섭씨
용량:
3740L
작동 온도:
121 섭씨
약실 길이:
3000mm
공급 능력
공급 능력:
10 Set/Sets per Month
포장 및 배송
패키지 정보
Seaworthy 수출 포장 또는 고객의 요구
포트
Qingdao
리드 타임: :
수량(Sets) 1 - 1 >1
예상 시간(일) 30 추후 협상
Product Description

Canned Beverage Retort Sterilizer is injected into a small amount of process water, to the expected position (not soak products) through efficient circulation pump - filter - high efficiency heat exchanger will be injected into the water spray pipe, and then by ejecting atomizing spray nozzle will hot water to the surface of food, uniform distribution of internal heat, pan unsterile blind Angle.Water through the heat exchanger for heating and cooling, heating and cooling speed is rapid, can effective sterilization, comprehensive, stability of product.Especially suitable for glass products and drinks beverage sterilization


Product Application

This kind of retort sterilizer is suitable for various of heat resistant packages and we strongly recommend you to buy this type.
1. Canned Containers: tin can, aluminum can

2. Plastic Container: PP bottle, HDPE bottle

3. Soft package: Aluminum foil bag, transparent bag, vacuum bag, retort pouches, doy-packs, ect.


Main Features

 1. Uniform heat distribution and no blind angle for sterilization;
2. Preheat the process water in the upper storage vessel in advance, shorten the sterilization time and improve the working efficiency;
3. Process water can be used repeatedly, saving energy, time, manpower, and reducing the production cost;
4. Short process time and high temperature preserve food flavor and nutrition;
5. Perfect pressure control system, efficiently avoiding the containers deformation and package break;
6. Continually monitor the temperature inside the retort, keeping the temperature difference ±0.5℃;
7. Siemens PLC automatic control system and touch screen, easy to operate;
8. System will make alarm calls automatically when the temperature, the pressure, the water level, or any other kinds of error occur.


MODEL NO.
Inner D     C length       Height
                     (mm)
Capacity
     m3
Body Thickness
   (mm)
Max Working Pressure
(MPa)

Installed Power
(Kw)

CT.10-1.B.4
1885
1200
1458
1.00
4
0.35
3.5
CT.12-2.B.4
3102
1500
1660
2.60
4
0.35
6
CT.14-3.B.4
3800
1800
2400
5.3
5
0.35
15.5

Those retort sterilizers in the chart are standard configurations.

We also can customize the retort machine according to your specific requirements or your drawing.


Certifications
Detailed Images

Machine Parts

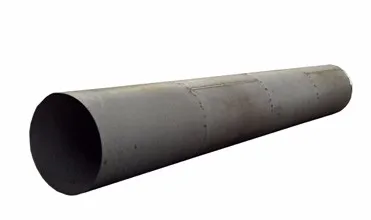

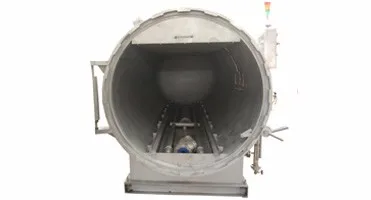

Name:Retort Cylinder

Brand: ZTD

Original: China

Sterilization pressure element, provide pressure-relief space for food sterilization process.

Main Parts

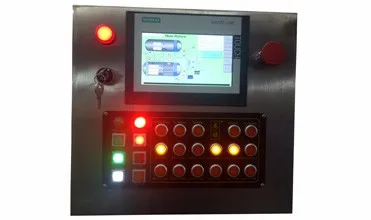

Name: PLC control box
Brand: SIEMENS
Original: Germany
All sterilization process are controlled by PLC and touch screen, it can store sterilization process, operators only need to press the start button, automatic alarm after sterilization, temperature control accuracy up to ±  0.1 °C

Machine Parts

Name: Insulation flow
Brand: ZTD
Original: China
Prevent sterilization heat loss and protection of staff safety during sterilization operation

Main Features

Name: Water pressure test
Brand: ZTD
Original: China
1. to test whether the tank is deformed within the test pressure range
2. to check whether the tank is working or leaks

Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Description and Working Principle:

Water Immersion Retort is usually composed of upper vessel and lower vessel. The top one is used to store preheated process water and recycle the hot process water before cooling process. The bottom one is the retort for sterilization.

After the food containers were loaded into the baskets and enter the retort, the preheated process water is delivered into the retort through water spreader on the top of retort, the water level was controlled and monitored by water level gauge outside the retort.

The steam enter the retort through the water spreader or additional steam spreader and heat the process water continually until the temperature rise to scheduled sterilization temperature.

The circulation pump recycle the hot water with a high speed and assure the uniform heat distribution inside the retort.

After the sterilization is completed, the hot water will be recycled to the top tank and stored for next batch sterilization. Then the cooling water will be filled into the retort directly to make the food container cool down.

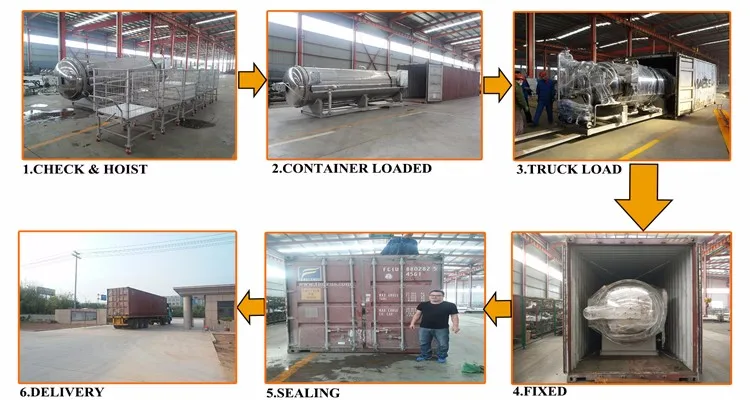

Packing & Delivery
We will deliver your goods by LCL/20'FCL/40'FCL depending on your order.

Before delivery, our professional technician will do trial run for each product to check until everything is functional, you also can come to our factory and test our machine together with us.

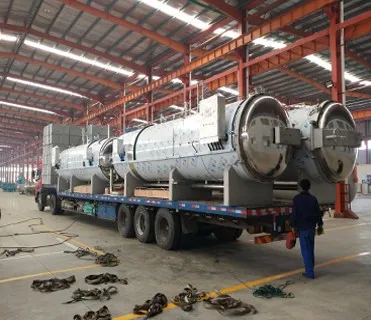

When loading, our workers will fix the retorts tightly with wire rope so that the retorts can't move in the container.

Related Products

  Water Spray Retort Machine

         100% Response Rate

 Water Immersion Food Retort

          100% Response Rate

              Retort Machine System

                  100% Response Rate

FAQ

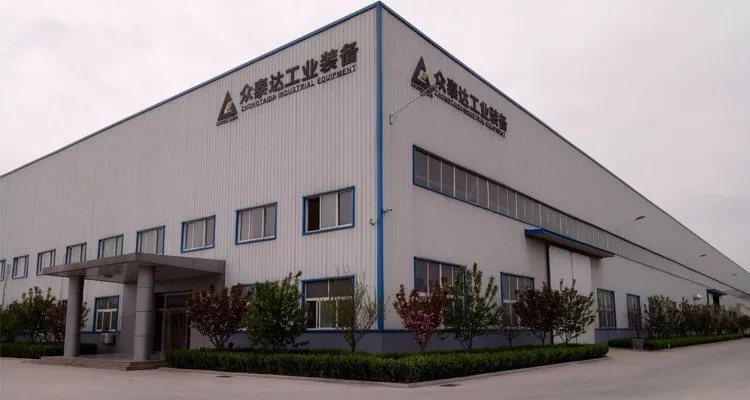

Our Company

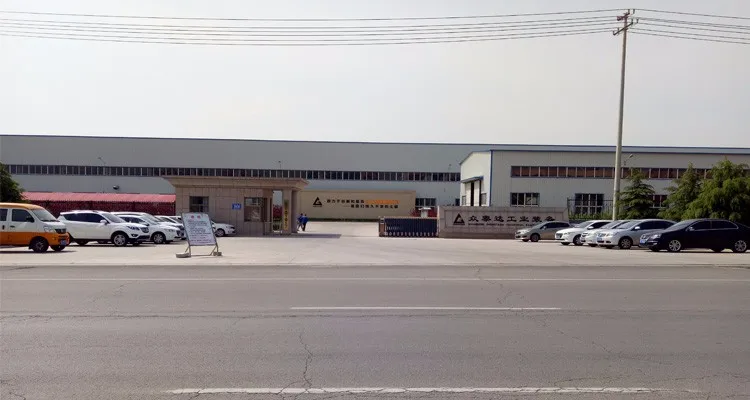

Shandong Zhongtaida Industrial Equipment Co.,ltd is loacted in Weifang city, Shandong province very near to Qingdao. It is specialized in food retort machine manufacture. Food retort autoclaves are designed with high temperature and pressure while control system can be designed in automatic or semi-automatic. We can desgin the retort sterilization machine as our customer's demand and do our best service .

More retort machine detail specs please check our website,
www.cnmosen.com
www.cn-autoclave.com
www.sdzttz.cn
