Fast Build Prefabricated Steel Structure Design Badminton Basketball Sports Hall

FOB 참조 가격:최근 가격 확인
$25.00 - $35.00 / 평방 미터 | 100.0 평방 미터 (최소.)
물자:
샌드위치 패널 스틸
샘플:
스틸
$100.00 /평방 미터 | 1 평방 미터 (최소.) | 샘플 구매하기
리드 타임::
수량(평방 미터) 1 - 10000 >10000
예상 시간(일) 45 양도 가능
커스터마이징:
Customized logo (Min. Order: 5000 평방 미터)
Customized packaging (Min. Order: 5000 평방 미터)

더 보기

Graphic customization (Min. Order: 5000 평방 미터) 덜 보기
신고 의심스러운 활동
개요
빠른 세부 사항
보장:
5 년
판매 후 서비스:
온라인 기술 지원, 현장 설치, 현지 훈련, 현장 검사, 무료 예비 부품
프로젝트 솔루션 기능:
그래픽 디자인, 3D 모델 디자인, 총 솔루션 프로젝트
신청:
스포츠 경기장
원래 장소:
Shandong, China
유명 상표:
RUIGANG
사용:
간이 차고, 호텔, 집, 사무실, 센트리 상자, 가드 하우스 , 가게, 위치를, 작업장, 식물
제품 유형:
스틸 구조
디자인 스타일:
현대
Door:
Steel Security Door
Size:
Costomers' Requirements
Type:
Light Steel Structure Frame
Keyword:
Moduler Homes
Color:
Customer Made
Structure:
Steel Structure Frame Welded
Column and beam:
connected with high intensity bo
Material:
Steel Q235 Q345
Product name:
Prefabricated Steel Structure Workshop Building
Usage:
50 Years
공급 능력
공급 능력:
40000 Ton/Tons per Year
포장 및 배송
패키지 정보
강철 프레임 사용 40' 컨테이너, cladding에 40HQ.
또는 고객.
배달: 지불 후 15 일
포트
Qingdao Port
리드 타임: :
수량(Square Meters) 1 - 10000 >10000
예상 시간(일) 45 추후 협상
Product Description

Fast build prefabricated Steel structure design badminten basketball sports hall


Advantages of light steel structure:

1) Cost saving and transportation convenient, custom design available
2) The main beam and column are made of quality steel(Q235B,Q345B)
3) Steel structure makes the house resist heavy wind of 140km/h and 8-grade earthquake
4) Easy assembly and disassembly several times without damage
5) Widely used in construction site, office building, dormitory etc.
6) Good environmental protection effect. Steel structure housing construction greatly reduces sand, stone and dosage of the ash. Most of the used materials are recyclable or degradable, little rubbish produced

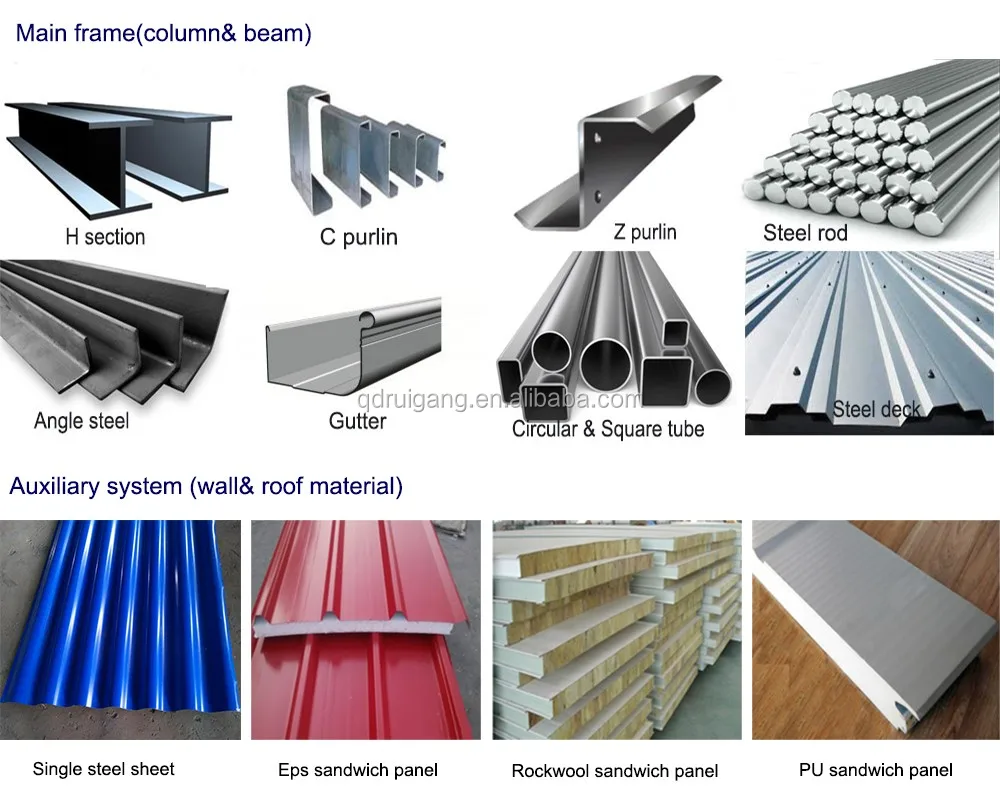

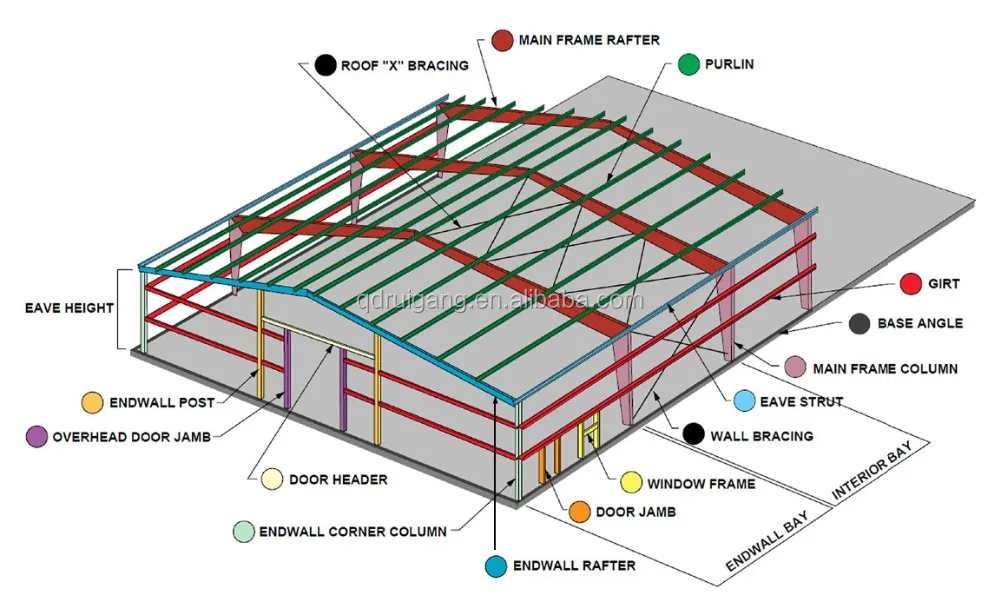

Steel structure technical parameter:

Column
Q235, Q345 welded H section steel
Beam
Q235, Q345 welded H section steel
Purlin
Q235 C channel or Z channel
Knee brace
Q235 angle steel
Vertical and transversalsupport
Q235 angle steel, round bar or steel pipe
Tie bar
Q235 steel pipe
Brace
Q235 round bar
Cladding materials
EPS, PU, Fiber glass wool sandwich panels or corrugated color steel sheet
Partition wall
sandwich panels (EPS, PU, Fiber glass wool etc.)
Door
sandwich panel sliding door or rolling up door
Gutter
stainless steel or color steel sheet
Rainspout:
PVC
Live load on roof
In 120kg/Sqm (Color steel panel surrounded)
Wind resistance grade
12 grades
Earthquake-resistance
8 grades
Structure usage
Up to 50 years
Detailed Images

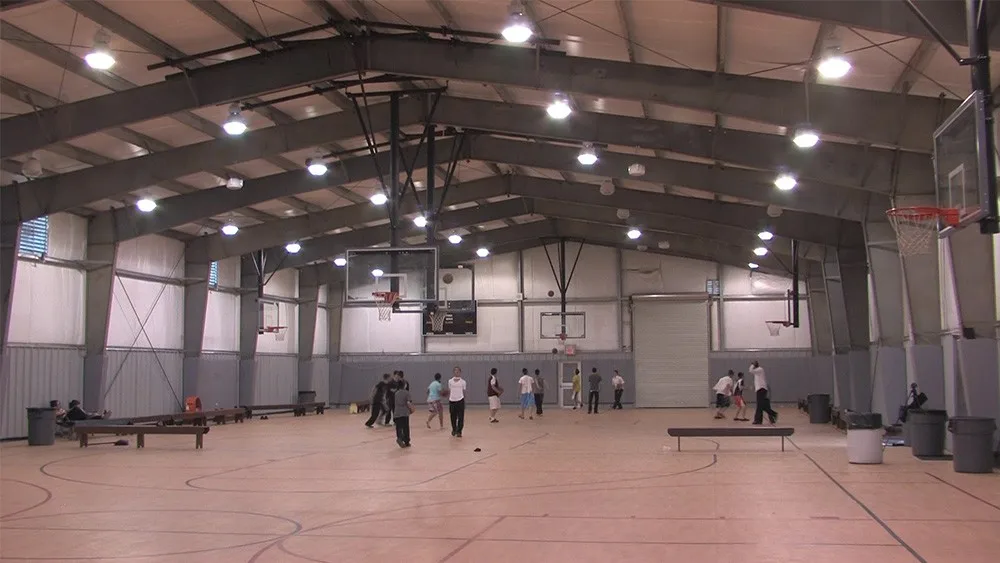

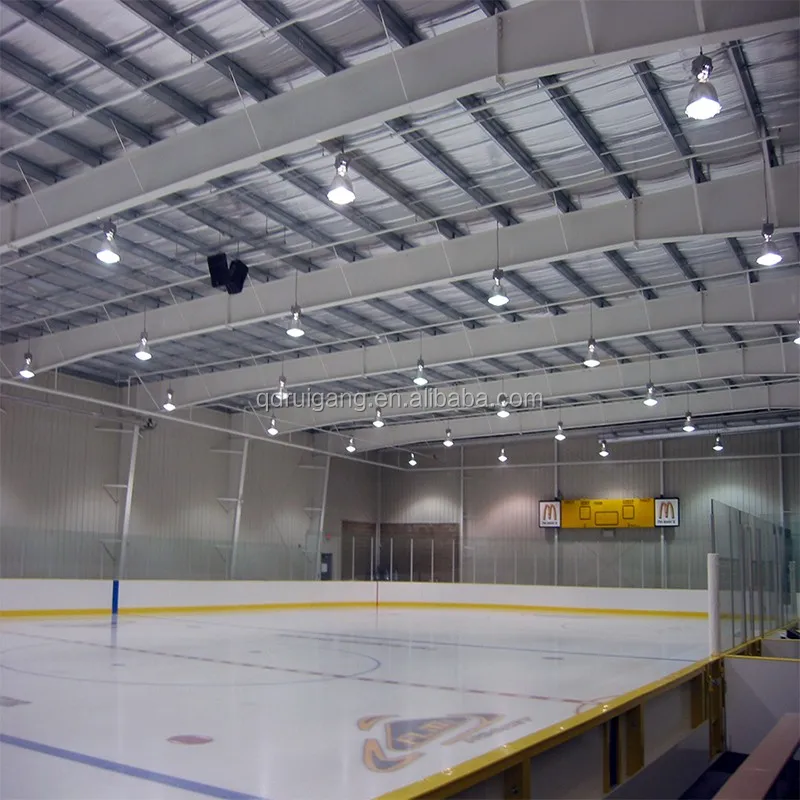

Steel structure indoor sports center

Whether your project will require a complex and innovative structure or just a basic steel structure shed, we have the experience and expertise to complete all your pre-engineered steel building needs. There is a lot to organize when installing a new steel structure building, which is why our services include general construction management and concrete construction. From design and value engineering to installation, detailing and scheduling, through the completion of your project, we are a full service light steel structure building contractor and will work with you every step of the way.

Certifications
Construction process

First foundation work before installing the prefabricated steel structure building.

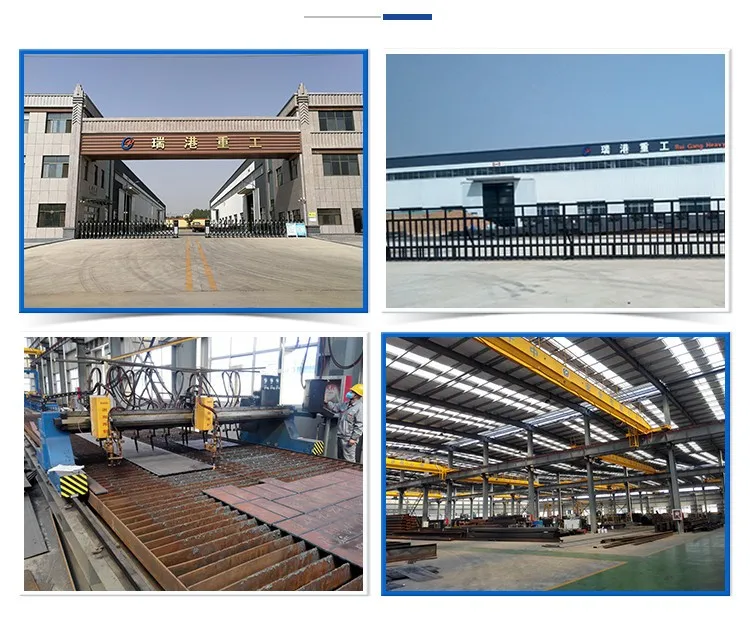

Our company

Qingdao Rui Gang Industry and Trade co., Ltd is the branch company of Qingdao Rui Gang Heavy Industries Co., Ltd, it is located in Huangdao district of Qingdao city.It covers an area of 30 thousand square meters which is specialized in designing,manufacturing and installation of steel structure products.The company has two professional production lines, the annual output reaches 30 thousand tons.It also owns professional design team,two senior structural engineers, three senior architects, three senior engineers, sixty professional processing staffs. Our company has three-grade steel structure construction qualification and passed the ISO9000 international systems Certifications.

Packing&Delivery

The steel materials shall be packed carefully for full protection. Specifically, main structure materials are generally loaded into 40'OT shipping containers, while sky light, ventilators, roof panels, wall panels and other accessories are loaded into 40'HC shipping containers for delivery.

Our service

3D model.

3D building information modeling software used in the building and construction industries for steel and concrete detailing,  we make this model for customer to create and manage 3D structural models in concrete or steel, and guides them through the process from concept to fabrication.

Foundation plan.

We provide foundation plan for your project for free. Please just make local geological report


If you need, we would love to send the anchor bolts and mold. Before the production work finish, you can do the foundation work first.

Building installation drawing.

Free installation drawing for your project. To make the erection work more clear and easier.

Besides, we make each steel component with different mark, only refer to the drawing and pick the right one to build.

Our customers! airport pick up! facotry visiting! Office discussion!

Quote requirements
1
Size: Length*width*height _____mm*_____mm*_____mm
2
Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s
3
Snow load (max. Snow height) _____kn/m2, _____mm
4
Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels, Corrugated steel sheet with fiber glass wool will be suggested; If not, the Corrugated steel sheet will be ok. The cost of the latter will be much lower than that of the former.
5
Door and window quantity & size _____units, _____(width)mm*_____(height)mm
FAQ

1.Are you a manufacture or trading company?
Reply: We are a factory with export license . We has the right to import and export business in China , is a comprehensive and large-scale industry and trade enterprises. You are welcomed to visit us for inspection at any time.

2.What are the main products your company produces?
Reply: The business scope of my company is mainly structural steel construction, such as industrial workshop, light steel mobile house, container house, warehouse, high-rise frame office building and frame structure of large equipment, etc. In addition, we also provide steel structure processing service, like the processing of H- steel, steel beam ,steel beam ,color steel plate, C-Purlin steel, Z-Purlin steel , floor deck etc.

3.What's the quality grade of the steel structure components?
Reply:Q345B is used for main steel structure, Q235B is used for secondary steel structure.

4.How about the derusting grade?
Reply: Ball blasting Sa2.5 on main steel structure manual derusting St2.0 on secondary steel structure.

5.How to install it?
Reply: We will furnish you the detailed construction drawing which could help you to erect and install the building step by step.We also could send the engineer to your local to help you if you need.
