Stone Filled Welded Wire Mesh Fence / Hexagonal Gabion Basket

  • 200-1999 평방 미터
    US$1.90
  • 2000-4999 평방 미터
    US$1.60
  • >=5000 평방 미터
    US$1.20
구멍:
10mm 13mm 15mm 20mm 50mm 30 미리메터 6mm 25 미리메터 8mm 1/2"
철사 직경:
0.6MM
$
- +
가능
0.8mm
$
- +
가능
1mm
$
- +
가능
All 7 Options
샘플:
US$2.00 /평방 미터, 1 평방 미터 (최소.): 샘플 구매하기
0개선택, US $(총계)
세부 사항 보기
배송비:
상품 수량을 확인해 주십시오.
리드 타임:
3 결제일 이후로
커스터마이징:
개인 맞춤 로고 (최소 주문: 10000 평방 미터)
개인 맞춤 포장 (최소 주문: 10000 평방 미터)

더 보기

개인 맞춤 그래픽 설정 (최소 주문: 10000 평방 미터) 덜 보기
샘플 - US$2.00 /평방 미터, 1 평방 미터 (최소.): 샘플 구매하기
로딩 중... 장바구니에 추가
신고 의심스러운 활동
개요
빠른 세부 사항
원래 장소:
Hebei, China
유명 상표:
Gebin
모델 번호:
Gabion 상자
물자:
직류 전기를 통한 철 철사, 직류 전기를 통한 철 철사
유형:
용접된 메시
신청:
Gabions
구멍 모양:
6각형
철사 계기:
2.0-4.0mm
소재:
Galvanized, pvc 코팅,
표면 처리:
전기 아연 도금
와이어 게이지:
최대 3mm
조리개:
50*70 60*80 50*100 120*150
Gabion 바구니 메쉬 크기:
5x7 cm 6x8 cm, 8x10 cm 8x12 cm, 10x12 cm 등
Gabion 바구니 크기:
디자인은 당 고객의 요구
정상적인 크기:
2x1x0.5 m, 3x2x0.23 m, 4x2x0.23 m.
컬러:
실버
인증서:
ISO9001
기능:
Attactive 및 내구성

포장 및 배송

판매 단위:
단일 품목
단일 패키지 크기:
100X50X50 cm
단일 총 중량:
60.000 kg
패키지 유형:
plastic film inside,moisture-proof paper outside or as customers' requirement
리드 타임: :
수량(평방 미터) 1 - 100000 >100000
예상 시간(일) 3 추후 협상
Product Description
Product Name
Stone Filled Welded Wire Mesh Fence / Hexagonal Gabion Basket
Material
 galvanized, pvc coated,
Color
Silver
Brade
Gebin
Used
building industry

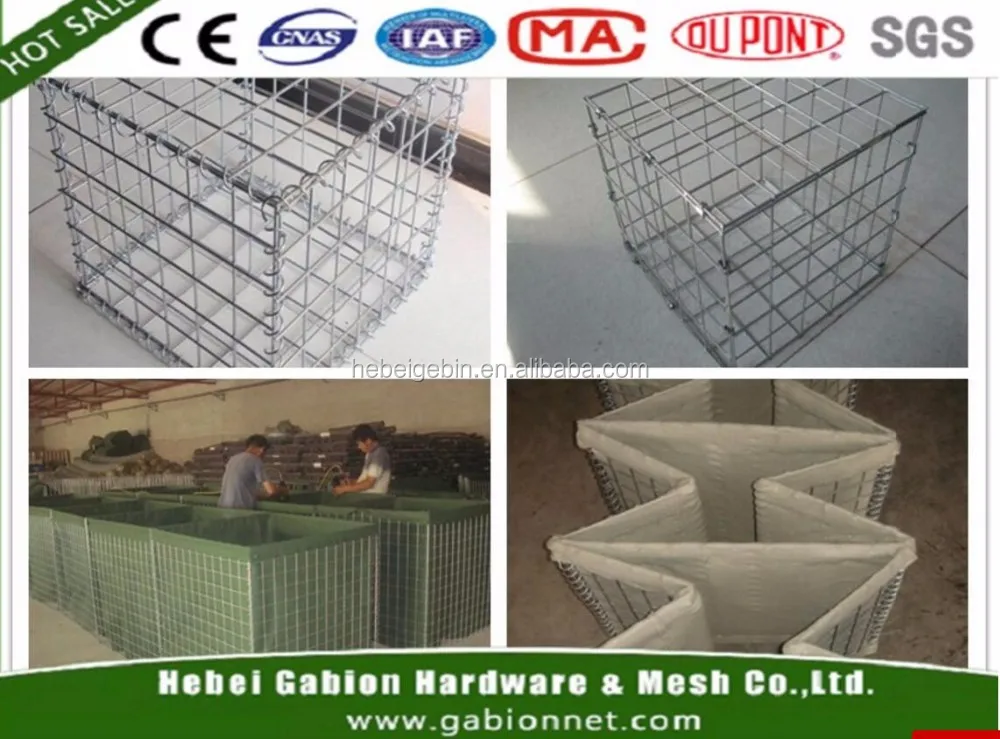

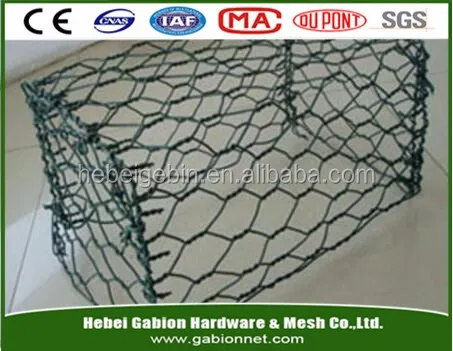

Products Show

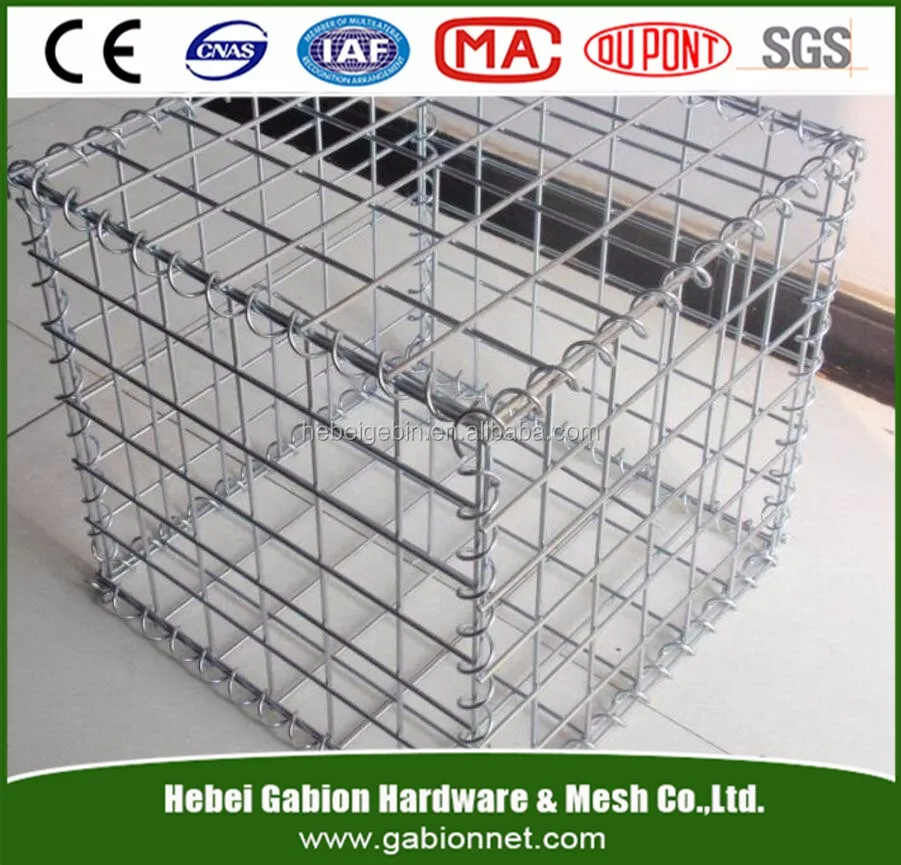

                                       Welded Gabion box
Welded Gabion Mesh, welded Gabion Box, welded Gabion Basket

Welded gabion mesh is widely used in retaining wall structure, rockfall and soil protection and so on. Welded gabions are filled on site with hard and durable stone to form mass gravity structures. And welded gabions are more quicker and simpler to be installed than woven mesh gabions.

Welded gabion mesh is manufactured from cold steel wire with high tensile strength. It is electrically welded together then hot dipped galvanized or PVC coated, ensuring a longer life. There are galvanized welded gabions and PVC welded gabions. Gabion meshes are designed on the principle of mass earth retaining wall. The strength of the wire mesh helps to stand the forces generated by the retained soil.

1.Material:

1,Hot dipped galvanized          2,PVC coated wire              3,Stainless steel wire
4,Gal-fan coated (95% Zinc 5% Aluminum for up to 4 times the life of a galvanized finish)

2.Specification

Normal Box sizes (m)
NO. of diaphragms (pcs)
Capacity ( m 3)
0.5x0.5x0.5
0
0.125
1x0.5x0.5
0
0.25
1x1x0.5
0
0.5
1x1x1
0
1
1.5x0.5x0.5
0
0.325
1.5x1x0.5
0
0.75
1.5x1x1
0
1.5
2x0.5x0.5
1
0.5
2x1x0.5
1
1
2x1x1
1
2
This table refers to the industry standard unit sizes; non-standard unit sizes are available in dimensions of multiples of the mesh opening
Normal Box sizes (m)
NO. of diaphragms (pcs)
Capacity per box (m3)
1.0x1.0x0.5
None
0.05
1.0x1.0x1.0
None
1.00
1.5x1.0x0.5
None
0.75
1.5x1.0x1.0
None
1.50
2.0x1.0x0.5
1
1.00
2.0x1.0x1.0
1
2.00
3.0x1.0x0.5
2
1.50
3.0x1.0x1.0
2
3.00
4.0x1.0x0.5
3
2.00
4.0x1.0x1.0
3
4.00
Corrosion Protection
Galvanized
95% Zinc + 5% Alu
PVC Coated
Mesh Size
50.8 x 50.8mm
76.2 x76.2mm
50.8 x 50.8mm
76.2 x76.2mm
50.8 x 50.8mm
76.2 x76.2mm
Unite Size
Wire Diameter
Wire Diameter
Wire Diameter
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm
3.0mm,4.0mm,5.0mm
3.0mm,4.0mm,5.0mm
3.0mm/3.8mm

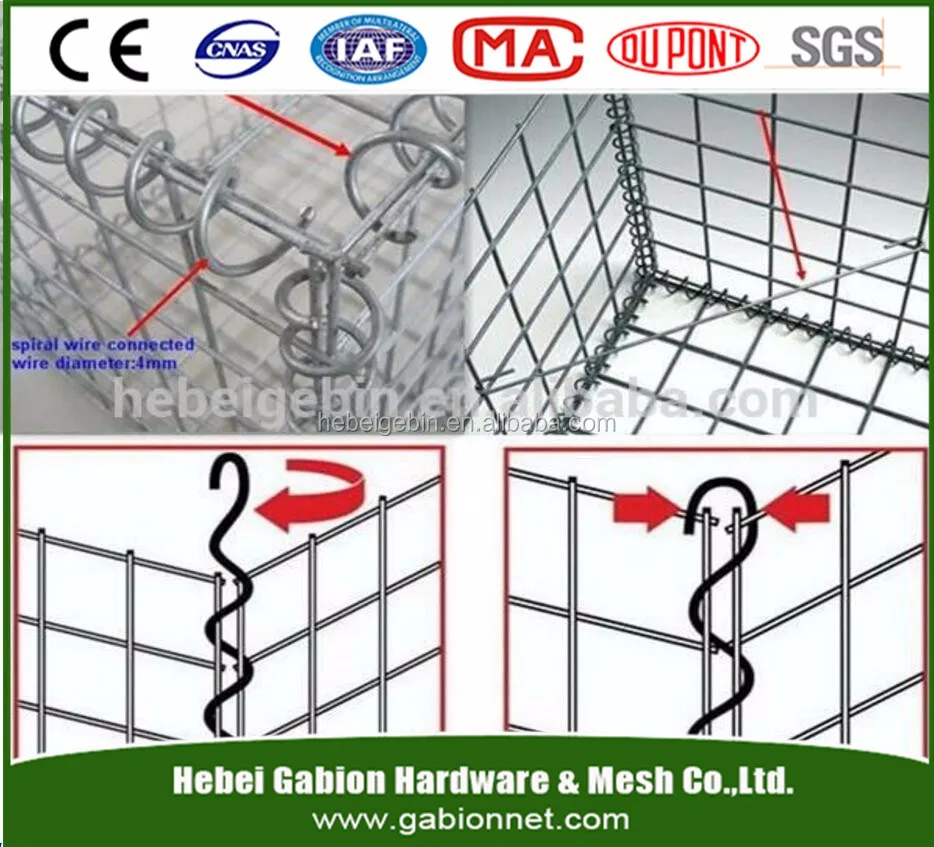

Connected by Spiral Wire, Stiffener and Pin.

4.How to install welded gabion mesh?

Step 1. Ends, diaphragms, front and back panels are placed upright on the bottom section of wire mesh.
Step 2. Secure panels by screwing spiral binders through the mesh openings in adjacent panels.
Step 3. Stiffeners shall be placed across the corners, at 300mm from the corner. Providing a diagonal bracing, and crimped over the line and cross wires on the front and side faces. None are needed in interior cells.

Step 4. Gabion box is filled with graded stone by hand or with a shovel.
Step 5. After filling, close the lid and secure with spiral binders at the diaphragms, ends, front and back.
Step 6. When stacking tiers of the welded gabion mesh, the lid of the lower tier may serve as the base of the upper tier. Secure with spiral binders and add pre-formed stiffeners to exterior cells before filling with graded stones.

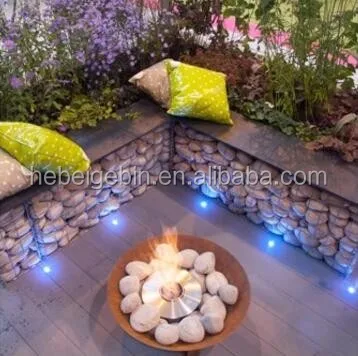

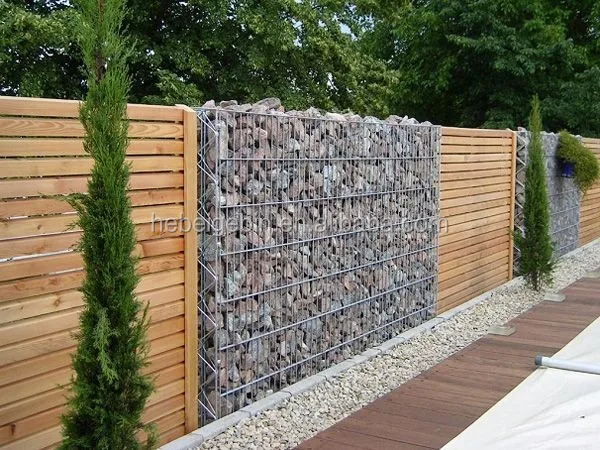

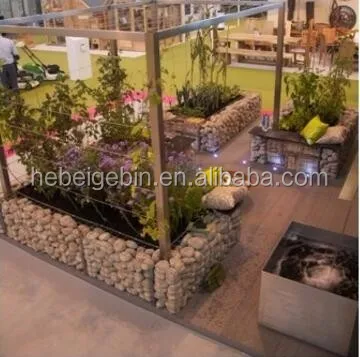

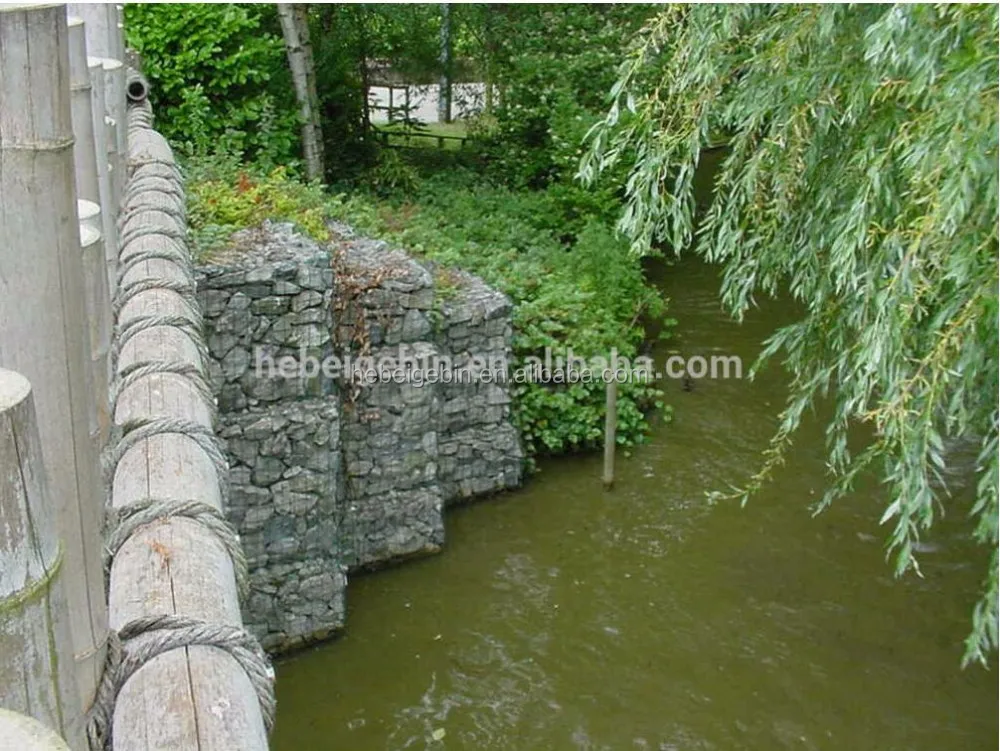

Applications

welded gabion mesh is widely used for the control and guide of water; preventing of rock breaking; water and soil, roadway and bridge protection; strengthening structure of soil; protection engineering of seaside area and retaining wall structures; hydraulic structures, dams and culverts; coastal embankment works; architectural feature retaining walls.The main application as follows:

a. Control and guide of water or flood
b. Flood bank or guiding bank
c. Preventing of rock breaking
d. Water and soil protection
e. Bridge protection
f. Strengthening structure of soil
g. Protection engineering of seaside area

Our Service

1. pre-sale serviceTitle goes here.

Prompt, professional and patient reply
Offer best quality products
Recommend the most suitable products

2.After-sale Service

Timely tracking cargo transportation
Building customer files for regularly visit
Free replacement of damaged products
Deal with customers’ dissatisfaction and complaints
Sending gift to our customers

3.Good service

OEM and ODM are accepted
Quick delivery
Reply within 24 hours
High quality and best price
With the fastest speed of delivery
Satisfactory after-sales service
Mutual development and mutual benefits

Our Company

Hebei Gabion Hardware And Mesh Co.,Ltd

Our major products include: gabion and mattress, chain link fence, fence netting and fence series, SNS fence, chicken wire, concrete reinforcement wire mesh, welded wire mesh, expanded metal mesh, aluminum metal mesh, cattle fence, screen mesh, wire mesh for construction, barbed wire, razor blade wire, steel bar grating, expanded metal deck, monkey ladder, stainless steel glove, star picket, plastic wire mesh and so on.

Factory

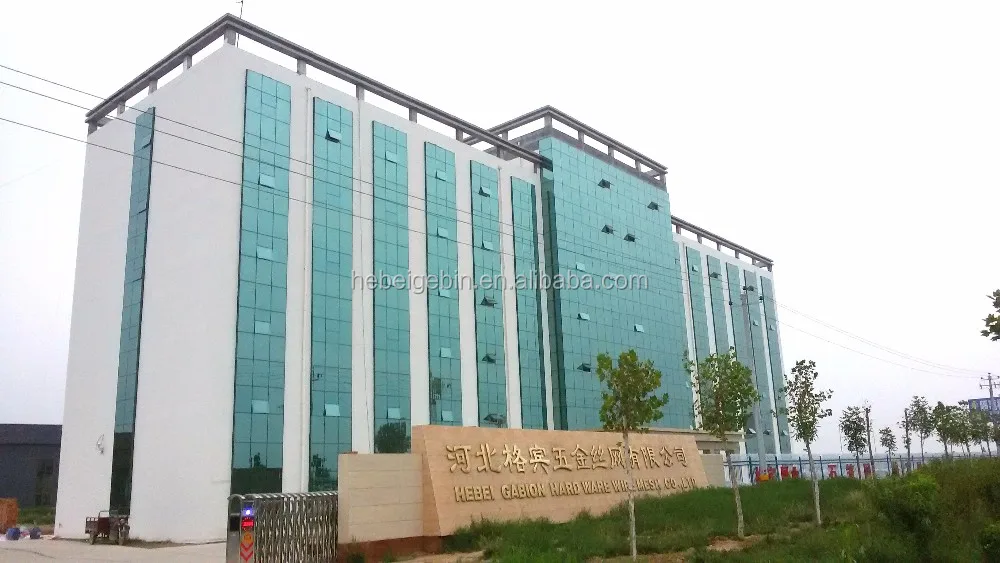

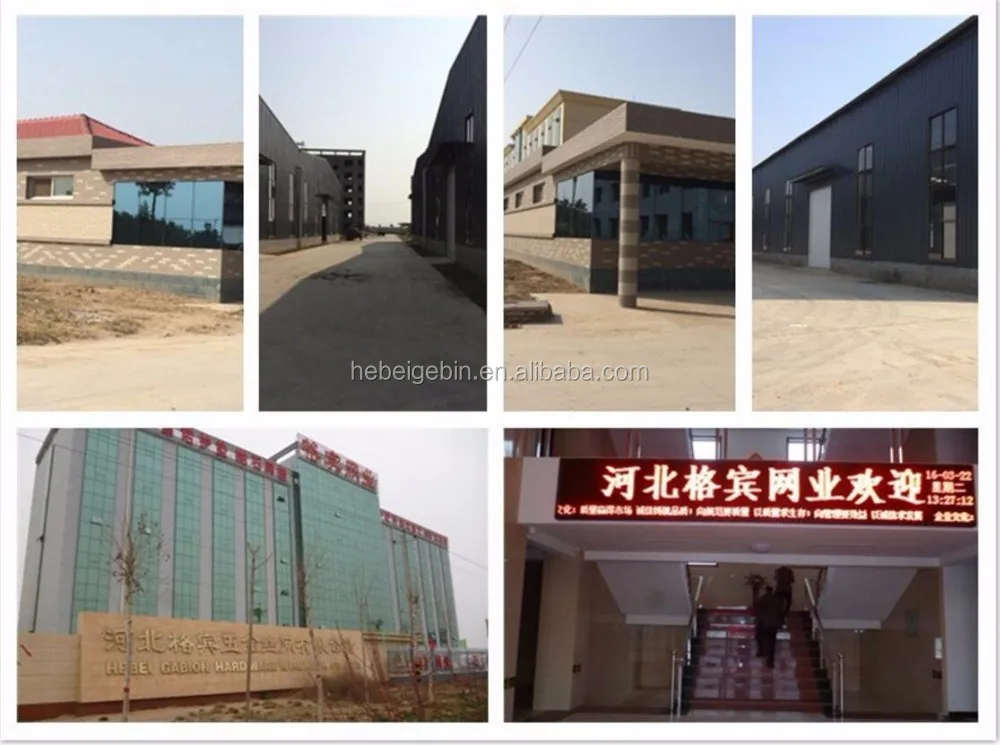

Our Factory

Workshop

Our Workshop

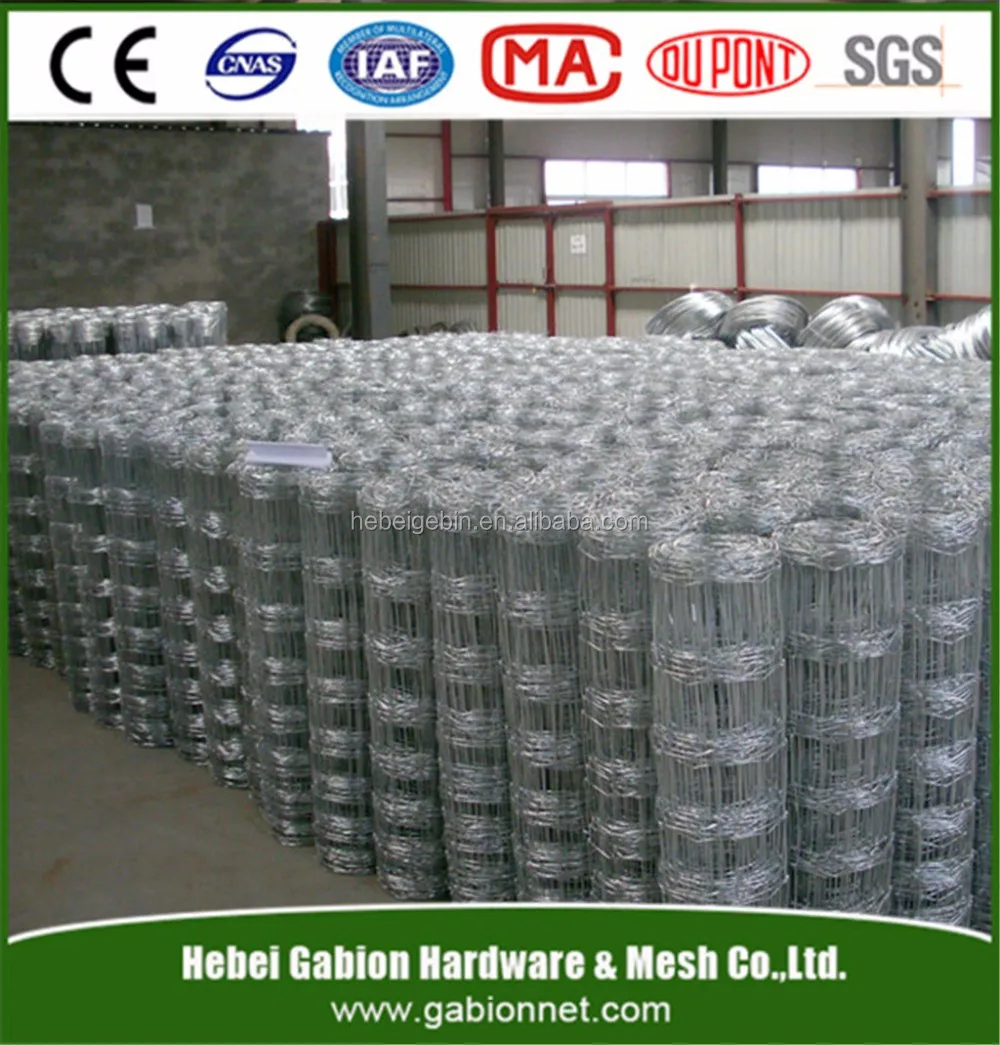

Warehouse

Our Warehouse

Team

Our Team

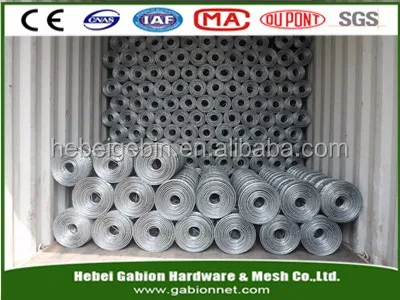

Packing & Delivery

Packing Details


40-100 pcs per bundle, binding with steel strape or strands; pallets; as per client's requirement.

Delivery Details


 within 15 days after your deposit

FAQ

Q: Can you offer free sample?

A: Yes, but usually the customer need to pay the freight

Q: Are you a manufacturer?

A: Yes, we have been in providing the professional products for 20 years.

Q: What information should I provide, if I want a lowest quotation?

A: The specification of the products.

Q: how about the delivery time?

A: Usually within10-15days,customized order may need longer time.

Q: How about the payment terms?

A:T/T, L/C at sight.

Why choose us?

1.More than 10 Years manufacturing experience.
2.Professional research and development team
3.Zero Customer Complaints for several Years
4.Environmental Protection
5.Excellent after-sales service.
